Extend audio and video signals over long distances without sacrificing resolution or quality. This device transmits HDMI signals over a single CAT Cat5e/6 cable. This HDBaseT device transmits to dedicated HDBaseT receivers, as well as products with the receivers built in – providing flexibility and interoperability on the job. “Plug and play” technology allows this product to bypass frustrating EQ settings, and it even includes bi-directional IR for complete system integration.

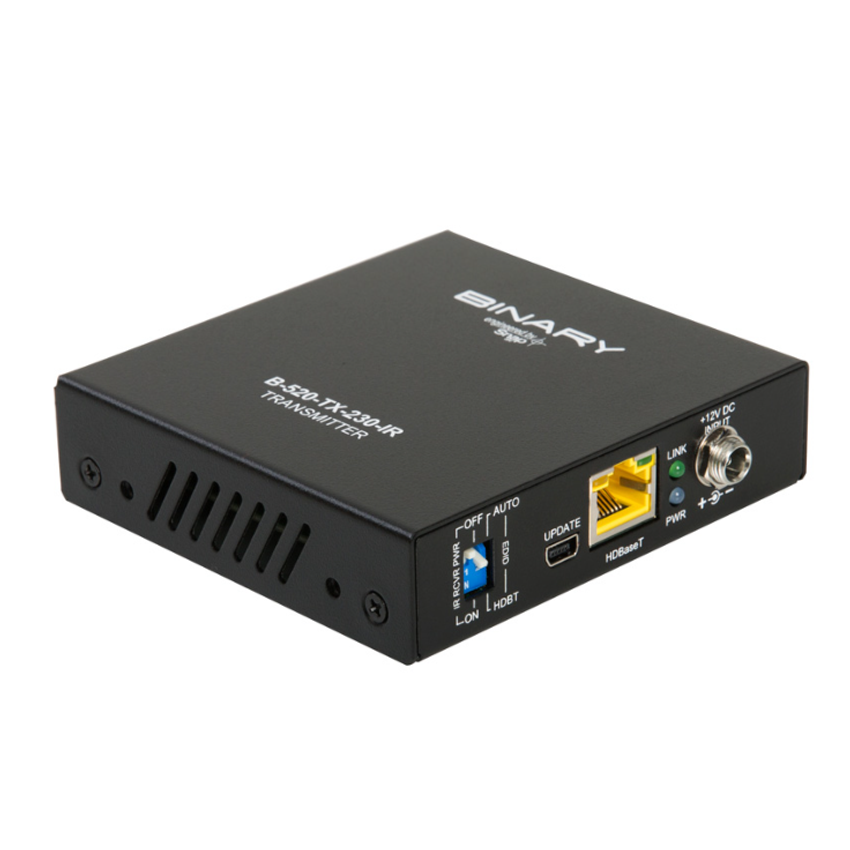

Binary™ 520 Series 1080p HDBaseT Transmitter with IR
Extend audio and video signals over long distances without sacrificing resolution or quality. This device transmits HDMI signals over a single CAT Cat5e/6 cable. This HDBaseT device transmits to dedicated HDBaseT receivers, as well as products with the receivers built in – providing flexibility and interoperability on the job. “Plug and play” technology allows this product to bypass frustrating EQ settings, and it even includes bi-directional IR for complete system integration.
4K Compatibility - This product is compatible with HDMI 1.4 and HDCP 1.4 specifications. This would limit the video resolution to 4K@30Hz 4:2:0.
Power Supply Voltage - Binary HDBaseT HDMI extenders use a 12 Volt DC power supply. All other Binary HDMI extenders use a 5 Volt DC power supply, and matrix switchers with integrated Cat 5 extenders use 12 Volt DC supplies. Using the 24 Volt DC power supply with any 5 or 12 Volt Binary product will result in damage to the product and possibly the power supply. Be sure to use the correct power supply with the correct product!
Shielded Cable Recommendation - Although HDBaseT transmission technology is much less susceptible to EMI interference than other transmission technologies, if possible, it is recommended that you pull shielded Cat5e/Cat6 with this product for maximum reliability. Please note: for proper shielding, shielded connectors must be used with drains connected at both ends. In addition, “EZ end” connectors are not recommended for use with HDMI extenders.
HDMI with Full 3D Support
This transmitter offers full support of HDMI® with 3D, Deep Color (36bit) and HDCP 1.4, as well as support for Dolby® True HD, Dolby® Digital Plus, DTS™-HD Master and LPCM audio formats.
Say Goodbye to Clock Stretching
This extender has a circuit embedded to solve the clock stretching issue seen when HDBaseT extenders are paired with cable boxes.
Better with HDBaseT
Thanks to HDBaseT technology, this Binary™ Receiver is able to receive full, uncompressed 1080p HD video and audio through a single CAT cable up to 330 ft. It provides greater RF immunity, so you get a better and more reliable signal, plus it's easier to install because you don’t have to fiddle with any EQ settings. Just plug and play and you're on your way to faster and easier media distribution.
Bi-Directional IR
Over the same CAT cable, you can easily send IR from head-end equipment to the TV location, and you get no-hassle integration with a variety of control systems. An IR receiver port provides power when connected to an IR receiver, or shuts off when connected to control systems. For best performance, use our Episode® IR flashers and receivers.
IR Flexibility
The Dip switch gives the flexibility of providing power to IR Receiver when connected to an IR receiver or shut off when connected to control systems.
Local HDMI Outputs
To make things easier for you, we’ve included output for HDMI at the transmitter, eliminating the need for an external splitter device. One device – many uses.
HDBaseT Compliant
This receiver complies with HDBaseT standards, meaning it can pair with any 3rd party device that has an integrated HDBaseT transmitter – such as an AVR. The result is reliable end-to-end performance with dependable interoperability among a wide range of HDBaseT products.
Work Smarter, Not Harder
Forget about wasting precious install time running back and forth, fiddling with transmitter and receiver settings, and struggling to get a good picture. With this transmitter there are no EQ settings required – all you do is plug and play. Now that’s smart!
Built-In ESD and Surge Protection
Intelligent circuit design, perfected through extensive hardware testing, has resulted in a robust product with excellent ESD and surge protection that exceeds CE Level 3 standards. During development, every connection was tortured with an ESD gun and a lightning simulator. They were hit with ESD at 15KV and surges up to 1600V. Most importantly, they lived to tell about it!
